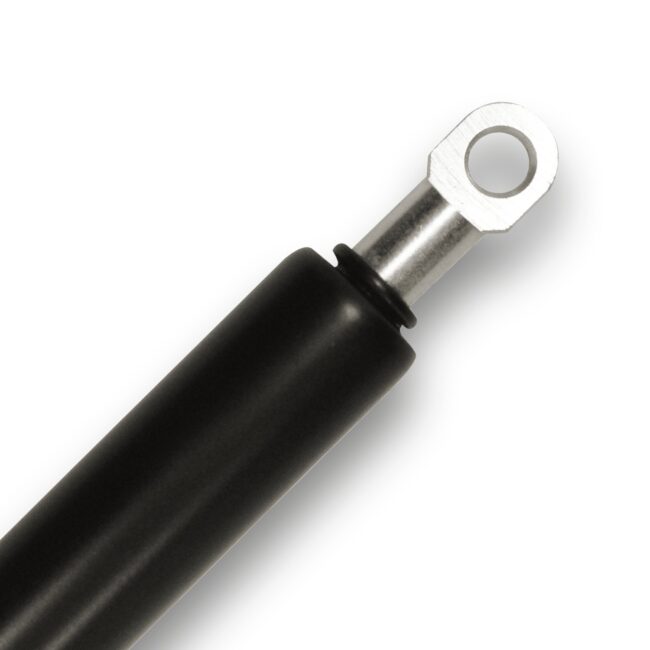

Adjustable Force Gas Struts

Adjustable gas struts, also known as variable force gas struts, can be used for applications where the required force is unknown. You can easily adjust the pressure to suit your application, making them ideal for new projects. Available maximum force ratings 700N 1200N 2400N The force can be adjusted by releasing pressure, allowing you to find the correct force for your application. Pressure is released via the grub screw on the neck of the gas strut using a 2mm Allen key. How to adjust your adjustable gas struts Insert the Allen key into the grub screw. Turn counterclockwise gently for a second at a time. Test the gas strut in your application. Repeat if needed until the desired pressure is reached. How to measure the gas strut length If replacing an existing strut, measure the original length from center-to-center of the end fittings. For new applications, measure the distance between mounting points. How do I know if enough pressure is released? Release pressure gradually and test after each adjustment. Do not over-release. If the application feels too stiff, release slightly more pressure. The strut is correctly adjusted when it operates smoothly. What end fittings will I need? If replacing an existing strut, select the same end fittings currently in use. For new applications, refer to the dimensions table below. End Fitting Dimensions: Force Ball Socket Ball Joint Eyelet Clevis 700N M6 Female–10mm Ball M6 Female–M8 Male Thread–10mm Ball M6 Female–8mm Hole M6 Female–8mm Hole with Pin 1200N M8 Female–10mm Ball M8 Female–M8 Male Thread–10mm Ball M8 Female–8mm Hole M8 Female–8mm Hole with Pin 2400N M10 Female–16mm Ball M10 Female–M10 Male Thread–16mm Ball M10 Female–10mm Hole* M10 Female–10mm Hole * 2400N with eyelet: 8mm hole when purchased with U-shaped pin brackets. If you need brackets, please check the related products below. At StrutsDepot, we supply a wide range of adjustable gas struts (gas springs). We make choosing the right product simple and efficient, with fast shipping directly from our UK warehouse. Please note: this product is sold individually.
